Objective:
This blog is to share how to run highly available ActiveMQ cluster in Master/Slave configuration.
Introduction:
ActiveMQ broker(s) tends to be a core piece of messaging infrastructure in an enterprise. It is vital for this messaging infrastructure to be highly available and scalable. Please read this link in order to learn more about creating network of brokers to support various use cases. One of the popular use case for ActiveMQ is the Master/Slave configuration with shared database. When this configuration is used, the message consumers and producers can operate without interruptions as they use ActiveMQ's connection factory with failover protocol. The failover protocol insulates the consumers and producers from having to deal with any potential downtime or application level reconnection logic when slave ActiveMQ node takes over to become the master which happens if the current master node goes down for any reason. I must caution that this configuration must not be used to mask any issues which take out the master node. We should iron out any causes that result in an unplanned master node outage.
Overview:
In this blog, I will demonstrate the following:
Prerequisites:
We will create a 2 node ActiveMQ cluster on the same Windows 7 machine. We will need to configure the ports (TCP & JMX) such that there is no conflict. ActiveMQ provides a script called "activemq-admin.bat" which helps in running multiple instances of ActiveMQ using the same binaries, very much like Tomcat. Let's go ahead and create broker-1 and broker-2 instances.
command: activemq-admin create <DIR-for-ActiveMQ-node>
Now let's create broker-2 instance...
You may have noticed the following properties above:
ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\bin\..
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\bin\..\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\bin\..\data
These properties need to be fixed as we'd like ACTIVEMQ_BASE and ACTIVEMQ_CONF to be different for both broker-1 and broker-2.
We need to edit the following files:
We need to differentiate the tcp ports for broker-1 and broker-2 and also enable JMX and configure JMX ports for remote monitoring.
Let's edit the activemq.xml for broker-1 to fix tcp port:
Repeat the same for broker-2. set TCP port to 61626 and JMX port to 2099.
Start broker-1.
You will observe that broker-2 is unable to acquire the lock since broker-1 already grabbed it. broker-2 will keep retrying to acquire the lock every 10 seconds.
Now let's configure the ActiveMQ web console.
By default, ActiveMQ distribution contains admin web console but in the Master/Slave configuration, it is unknown which node is the master. So it is doesn't make sense to use the embedded web console. Hence it is best to have ActiveMQ web console outside of the ActiveMQ nodes.
You can disable the embedded ActiveMQ Web Console in each node by commenting the following line in activemq.xml in conf directory of each ActiveMQ node.
<!--<import resource="jetty.xml"/>-->
For our example, we will deploy ActiveMQ Web Console web application in Tomcat container and then configure ActiveMQ web console application to intelligently point to the master node in ActiveMQ cluster.
so let's copy the activemq-web-console-5.8.0.war to webapps directory of Tomcat. Add the following line to catalina.bat
set JAVA_OPTS=-Dwebconsole.type=properties -Dwebconsole.jms.url=failover:(tcp://localhost:61616,tcp://localhost:61626) -Dwebconsole.jmx.url=service:jmx:rmi:///jndi/rmi://localhost:1099/jmxrmi,service:jmx:rmi:///jndi/rmi://localhost:2099/jmxrmi
Now let's start Tomcat.
Let's access the web console: http://localhost:8080/activemq-web-console-5.8.0
Use admin/admin for username/password if prompted. These are default security settings. Refer jetty.xml and jetty-realm.properties in conf directory.
As shown above, "broker-1" is the current master broker.
Now, if you were to shutdown broker-1. Hit Control+C on Terminal window running broker-1, you'd notice that broker-2 acquires the lock and becomes the master.
Let's refresh the web console
As you may observe, now the master node is broker-2.
This blog is to share how to run highly available ActiveMQ cluster in Master/Slave configuration.
Introduction:
ActiveMQ broker(s) tends to be a core piece of messaging infrastructure in an enterprise. It is vital for this messaging infrastructure to be highly available and scalable. Please read this link in order to learn more about creating network of brokers to support various use cases. One of the popular use case for ActiveMQ is the Master/Slave configuration with shared database. When this configuration is used, the message consumers and producers can operate without interruptions as they use ActiveMQ's connection factory with failover protocol. The failover protocol insulates the consumers and producers from having to deal with any potential downtime or application level reconnection logic when slave ActiveMQ node takes over to become the master which happens if the current master node goes down for any reason. I must caution that this configuration must not be used to mask any issues which take out the master node. We should iron out any causes that result in an unplanned master node outage.
Overview:
In this blog, I will demonstrate the following:
- Run 2 ActiveMQ nodes in a Master/Slave configuration with a shared KahaDB file based database.
- Configure ActiveMQ web console hosted in a Tomcat instance to point to whichever node is Master node in the cluster.
- Failover scenarios.
- Message publisher and consumer behavior oblivious to the failover.
- Install ActiveMQ version 5.8.0
- Download ActiveMQ version 5.8.0 web console war from here
- Install Tomcat version 7.0.35 - To host the ActiveMQ Web Console application
We will create a 2 node ActiveMQ cluster on the same Windows 7 machine. We will need to configure the ports (TCP & JMX) such that there is no conflict. ActiveMQ provides a script called "activemq-admin.bat" which helps in running multiple instances of ActiveMQ using the same binaries, very much like Tomcat. Let's go ahead and create broker-1 and broker-2 instances.
command: activemq-admin create <DIR-for-ActiveMQ-node>
C:\apache-activemq-5.8.0\bin>activemq-admin create ..\cluster\broker-1 Java Runtime: Sun Microsystems Inc. 1.6.0_31 C:\Program Files\Java\jdk1.6.0_31\jre Heap sizes: current=125632k free=124976k max=1864192k JVM args: -Dactivemq.classpath=C:\apache-activemq-5.8.0\bin\..\conf;C:\apache-activemq-5.8.0\bin\..\data; -Dactivemq.home=C:\apache-activemq-5.8.0 \bin\.. -Dactivemq.base=C:\apache-activemq-5.8.0\bin\.. -Dactivemq.data=C:\apache-activemq-5.8.0\bin\..\data -Djava.io.tmpdir=C:\apache-activemq-5.8.0 \bin\..\data\tmp -Dactivemq.conf=C:\apache-activemq-5.8.0\bin\..\conf Extensions classpath: [C:\apache-activemq-5.8.0\bin\..\lib,C:\apache-activemq-5.8.0\bin\..\lib\camel,C:\apache-activemq-5.8.0\bin\..\lib\optional,C:\apache-activemq-5.8.0 \bin\..\lib\web,C:\apache-activemq-5.8.0\bin\..\lib\extra] ACTIVEMQ_HOME: C:\apache-activemq-5.8.0\bin\.. ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\bin\.. ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\bin\..\conf ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\bin\..\data Running create broker task... Creating directory: C:\apache-activemq-5.8.0\cluster\broker-1 Creating directory: C:\apache-activemq-5.8.0\cluster\broker-1\bin Creating directory: C:\apache-activemq-5.8.0\cluster\broker-1\conf Creating new file: C:\apache-activemq-5.8.0\cluster\broker-1\bin\broker-1.bat Creating new file: C:\apache-activemq-5.8.0\cluster\broker-1\bin\broker-1 Copying from: C:\apache-activemq-5.8.0\conf\activemq.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-command.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-command.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-demo.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-demo.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-dynamic-network-broker1.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-dynamic-network-broker1.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-dynamic-network-broker2.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-dynamic-network-broker2.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-jdbc.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-jdbc.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-scalability.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-scalability.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-security.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-security.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-specjms.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-specjms.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-static-network-broker1.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-static-network-broker1.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-static-network-broker2.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-static-network-broker2.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-stomp.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-stomp.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-throughput.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\activemq-throughput.xml Copying from: C:\apache-activemq-5.8.0\conf\broker-localhost.cert to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\broker-localhost.cert Copying from: C:\apache-activemq-5.8.0\conf\broker.ks to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\broker.ks Copying from: C:\apache-activemq-5.8.0\conf\broker.ts to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\broker.ts Copying from: C:\apache-activemq-5.8.0\conf\camel.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\camel.xml Copying from: C:\apache-activemq-5.8.0\conf\client.ks to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\client.ks Copying from: C:\apache-activemq-5.8.0\conf\client.ts to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\client.ts Copying from: C:\apache-activemq-5.8.0\conf\credentials-enc.properties to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\credentials-enc.properties Copying from: C:\apache-activemq-5.8.0\conf\credentials.properties to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\credentials.properties Copying from: C:\apache-activemq-5.8.0\conf\jetty-demo.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jetty-demo.xml Copying from: C:\apache-activemq-5.8.0\conf\jetty-realm.properties to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jetty-realm.properties Copying from: C:\apache-activemq-5.8.0\conf\jetty.xml to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jetty.xml Copying from: C:\apache-activemq-5.8.0\conf\jmx.access to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jmx.access Copying from: C:\apache-activemq-5.8.0\conf\jmx.password to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\jmx.password Copying from: C:\apache-activemq-5.8.0\conf\log4j.properties to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\log4j.properties Copying from: C:\apache-activemq-5.8.0\conf\logging.properties to: C:\apache-activemq-5.8.0\cluster\broker-1\conf\logging.properties
Now let's create broker-2 instance...
C:\apache-activemq-5.8.0\bin>activemq-admin create ..\cluster\broker-2 Java Runtime: Sun Microsystems Inc. 1.6.0_31 C:\Program Files\Java\jdk1.6.0_31\jre Heap sizes: current=125632k free=124976k max=1864192k JVM args: -Dactivemq.classpath=C:\apache-activemq-5.8.0\bin\..\conf;C:\apache-activemq-5.8.0\bin\..\data; -Dactivemq.home=C:\apache-activemq-5.8.0 \bin\.. -Dactivemq.base=C:\apache-activemq-5.8.0\bin\.. -Dactivemq.data=C:\apache-activemq-5.8.0\bin\..\data -Djava.io.tmpdir=C:\apache-activemq-5.8.0 \bin\..\data\tmp -Dactivemq.conf=C:\apache-activemq-5.8.0\bin\..\conf Extensions classpath: [C:\apache-activemq-5.8.0\bin\..\lib,C:\apache-activemq-5.8.0\bin\..\lib\camel,C:\apache-activemq-5.8.0\bin\..\lib\optional,C:\apache-activemq-5.8.0 \bin\..\lib\web,C:\apache-activemq-5.8.0\bin\..\lib\extra] ACTIVEMQ_HOME: C:\apache-activemq-5.8.0\bin\.. ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\bin\.. ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\bin\..\conf ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\bin\..\data Running create broker task... Creating directory: C:\apache-activemq-5.8.0\cluster\broker-2 Creating directory: C:\apache-activemq-5.8.0\cluster\broker-2\bin Creating directory: C:\apache-activemq-5.8.0\cluster\broker-2\conf Creating new file: C:\apache-activemq-5.8.0\cluster\broker-2\bin\broker-2.bat Creating new file: C:\apache-activemq-5.8.0\cluster\broker-2\bin\broker-2 Copying from: C:\apache-activemq-5.8.0\conf\activemq.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-command.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-command.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-demo.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-demo.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-dynamic-network-broker1.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-dynamic-network-broker1.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-dynamic-network-broker2.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-dynamic-network-broker2.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-jdbc.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-jdbc.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-scalability.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-scalability.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-security.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-security.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-specjms.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-specjms.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-static-network-broker1.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-static-network-broker1.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-static-network-broker2.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-static-network-broker2.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-stomp.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-stomp.xml Copying from: C:\apache-activemq-5.8.0\conf\activemq-throughput.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\activemq-throughput.xml Copying from: C:\apache-activemq-5.8.0\conf\broker-localhost.cert to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\broker-localhost.cert Copying from: C:\apache-activemq-5.8.0\conf\broker.ks to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\broker.ks Copying from: C:\apache-activemq-5.8.0\conf\broker.ts to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\broker.ts Copying from: C:\apache-activemq-5.8.0\conf\camel.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\camel.xml Copying from: C:\apache-activemq-5.8.0\conf\client.ks to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\client.ks Copying from: C:\apache-activemq-5.8.0\conf\client.ts to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\client.ts Copying from: C:\apache-activemq-5.8.0\conf\credentials-enc.properties to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\credentials-enc.properties Copying from: C:\apache-activemq-5.8.0\conf\credentials.properties to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\credentials.properties Copying from: C:\apache-activemq-5.8.0\conf\jetty-demo.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jetty-demo.xml Copying from: C:\apache-activemq-5.8.0\conf\jetty-realm.properties to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jetty-realm.properties Copying from: C:\apache-activemq-5.8.0\conf\jetty.xml to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jetty.xml Copying from: C:\apache-activemq-5.8.0\conf\jmx.access to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jmx.access Copying from: C:\apache-activemq-5.8.0\conf\jmx.password to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\jmx.password Copying from: C:\apache-activemq-5.8.0\conf\log4j.properties to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\log4j.properties Copying from: C:\apache-activemq-5.8.0\conf\logging.properties to: C:\apache-activemq-5.8.0\cluster\broker-2\conf\logging.properties
You may have noticed the following properties above:
ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\bin\..
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\bin\..\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\bin\..\data
These properties need to be fixed as we'd like ACTIVEMQ_BASE and ACTIVEMQ_CONF to be different for both broker-1 and broker-2.
We need to edit the following files:
- broker-1.bat in C:\apache-activemq-5.8.0\cluster\broker-1\bin directory
- set ACTIVEMQ_HOME="C:/apache-activemq-5.8.0"
- set ACTIVEMQ_BASE="C:/apache-activemq-5.8.0/cluster/broker-1"
- set ACTIVEMQ_CONF=%ACTIVEMQ_BASE%/conf
- broker-2.bat in C:\apache-activemq-5.8.0\cluster\broker-2\bin directory
- set ACTIVEMQ_HOME="C:/apache-activemq-5.8.0"
- set ACTIVEMQ_BASE="C:/apache-activemq-5.8.0/cluster/broker-2"
- set ACTIVEMQ_CONF=%ACTIVEMQ_BASE%/conf
We need to differentiate the tcp ports for broker-1 and broker-2 and also enable JMX and configure JMX ports for remote monitoring.
Let's edit the activemq.xml for broker-1 to fix tcp port:
<transportConnectors>
<!-- DOS protection, limit concurrent connections to 1000 and frame size to 100MB -->
<transportConnector name="openwire" uri="tcp://0.0.0.0:61616?maximumConnections=1000&wireformat.maxFrameSize=104857600"/>
<!--<transportConnector name="amqp" uri="amqp://0.0.0.0:5672?maximumConnections=1000&wireformat.maxFrameSize=104857600"/>-->
</transportConnectors>
Let's edit the activemq.xml for broker-1 to enable JMX monitoring, notice useJMX="true" attribute below. <broker xmlns="http://activemq.apache.org/schema/core" brokerName="broker-1" dataDirectory="${activemq.data}" useJmx="true">
Let's configure the JMX port
<managementContext>
<managementContext createConnector="true" connectorPort="1099"/>
</managementContext>
Repeat the same for broker-2. set TCP port to 61626 and JMX port to 2099.
Start broker-1.
C:\apache-activemq-5.8.0\cluster\broker-1\bin>broker-1.bat
Java Runtime: Sun Microsystems Inc. 1.6.0_31 C:\Program Files\Java\jdk1.6.0_31\jre
Heap sizes: current=1004928k free=994439k max=1004928k
JVM args: -Dcom.sun.management.jmxremote -Xms1G -Xmx1G -Djava.util.logging.config.file=logging.properties -Dactivemq.classpath=C:/apache-activemq-
5.8.0/cluster/broker-1/conf;C:/apache-activemq-5.8.0/cluster/broker-1/conf;C:/apache-activemq-5.8.0/conf; -Dactivemq.home=C:/apache-activemq-5.8.0 -Da
ctivemq.base=C:/apache-activemq-5.8.0/cluster/broker-1 -Dactivemq.conf=C:/apache-activemq-5.8.0/cluster/broker-1/conf -Dactivemq.data=C:/apache-active
mq-5.8.0\data -Djava.io.tmpdir=C:/apache-activemq-5.8.0\data\tmp
Extensions classpath:
[C:\apache-activemq-5.8.0\cluster\broker-1\lib,C:\apache-activemq-5.8.0\lib,C:\apache-activemq-5.8.0\cluster\broker-1\lib\camel,C:\apache-activemq-5
.8.0\cluster\broker-1\lib\optional,C:\apache-activemq-5.8.0\cluster\broker-1\lib\web,C:\apache-activemq-5.8.0\cluster\broker-1\lib\extra,C:\apache-act
ivemq-5.8.0\lib\camel,C:\apache-activemq-5.8.0\lib\optional,C:\apache-activemq-5.8.0\lib\web,C:\apache-activemq-5.8.0\lib\extra]
ACTIVEMQ_HOME: C:\apache-activemq-5.8.0
ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\cluster\broker-1
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\cluster\broker-1\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\data
Loading message broker from: xbean:activemq.xml
INFO | Refreshing org.apache.activemq.xbean.XBeanBrokerFactory$1@71060478: startup date [Tue Jul 09 16:59:15 CDT 2013]; root of context hierarchy
INFO | PListStore:[C:\apache-activemq-5.8.0\data\broker-1\tmp_storage] started
INFO | Using Persistence Adapter: KahaDBPersistenceAdapter[C:\apache-activemq-5.8.0\data\kahadb]
INFO | JMX consoles can connect to service:jmx:rmi:///jndi/rmi://localhost:1099/jmxrmi
INFO | KahaDB is version 4
INFO | Recovering from the journal ...
INFO | Recovery replayed 1 operations from the journal in 0.028 seconds.
INFO | Apache ActiveMQ 5.8.0 (broker-1, ID:AKUNTAMU-1-27777-1373407157813-0:1) is starting
INFO | Listening for connections at: tcp://AKUNTAMU-1:61616?maximumConnections=1000&wireformat.maxFrameSize=104857600
INFO | Connector openwire Started
INFO | Apache ActiveMQ 5.8.0 (broker-1, ID:AKUNTAMU-1-27777-1373407157813-0:1) started
INFO | For help or more information please see: http://activemq.apache.org
WARN | Store limit is 102400 mb, whilst the data directory: C:\apache-activemq-5.8.0\data\kahadb only has 38889 mb of usable space
ERROR | Temporary Store limit is 51200 mb, whilst the temporary data directory: C:\apache-activemq-5.8.0\data\broker-1\tmp_storage only has 38889 mb o
f usable space
INFO | Web console type: embedded
INFO | ActiveMQ WebConsole initialized.
INFO | Initializing Spring FrameworkServlet 'dispatcher'
INFO | jolokia-agent: No access restrictor found at classpath:/jolokia-access.xml, access to all MBeans is allowed
Start broker-2.You will observe that broker-2 is unable to acquire the lock since broker-1 already grabbed it. broker-2 will keep retrying to acquire the lock every 10 seconds.
C:\apache-activemq-5.8.0\cluster\broker-2\bin>broker-2.bat
Java Runtime: Sun Microsystems Inc. 1.6.0_31 C:\Program Files\Java\jdk1.6.0_31\jre
Heap sizes: current=1004928k free=994439k max=1004928k
JVM args: -Dcom.sun.management.jmxremote -Xms1G -Xmx1G -Djava.util.logging.config.file=logging.properties -Dactivemq.classpath=C:/apache-activemq-
5.8.0/cluster/broker-2/conf;C:/apache-activemq-5.8.0/cluster/broker-2/conf;C:/apache-activemq-5.8.0/conf; -Dactivemq.home=C:/apache-activemq-5.8.0 -Da
ctivemq.base=C:/apache-activemq-5.8.0/cluster/broker-2 -Dactivemq.conf=C:/apache-activemq-5.8.0/cluster/broker-2/conf -Dactivemq.data=C:/apache-active
mq-5.8.0\data -Djava.io.tmpdir=C:/apache-activemq-5.8.0\data\tmp
Extensions classpath:
[C:\apache-activemq-5.8.0\cluster\broker-2\lib,C:\apache-activemq-5.8.0\lib,C:\apache-activemq-5.8.0\cluster\broker-2\lib\camel,C:\apache-activemq-5
.8.0\cluster\broker-2\lib\optional,C:\apache-activemq-5.8.0\cluster\broker-2\lib\web,C:\apache-activemq-5.8.0\cluster\broker-2\lib\extra,C:\apache-act
ivemq-5.8.0\lib\camel,C:\apache-activemq-5.8.0\lib\optional,C:\apache-activemq-5.8.0\lib\web,C:\apache-activemq-5.8.0\lib\extra]
ACTIVEMQ_HOME: C:\apache-activemq-5.8.0
ACTIVEMQ_BASE: C:\apache-activemq-5.8.0\cluster\broker-2
ACTIVEMQ_CONF: C:\apache-activemq-5.8.0\cluster\broker-2\conf
ACTIVEMQ_DATA: C:\apache-activemq-5.8.0\data
Loading message broker from: xbean:activemq.xml
INFO | Refreshing org.apache.activemq.xbean.XBeanBrokerFactory$1@420f9c40: startup date [Tue Jul 09 17:02:55 CDT 2013]; root of context hierarchy
INFO | PListStore:[C:\apache-activemq-5.8.0\data\broker-2\tmp_storage] started
INFO | Using Persistence Adapter: KahaDBPersistenceAdapter[C:\apache-activemq-5.8.0\data\kahadb]
INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.
INFO | JMX consoles can connect to service:jmx:rmi:///jndi/rmi://localhost:2099/jmxrmi
INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.
INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio
n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked.
Now let's configure the ActiveMQ web console.
By default, ActiveMQ distribution contains admin web console but in the Master/Slave configuration, it is unknown which node is the master. So it is doesn't make sense to use the embedded web console. Hence it is best to have ActiveMQ web console outside of the ActiveMQ nodes.
You can disable the embedded ActiveMQ Web Console in each node by commenting the following line in activemq.xml in conf directory of each ActiveMQ node.
<!--<import resource="jetty.xml"/>-->
For our example, we will deploy ActiveMQ Web Console web application in Tomcat container and then configure ActiveMQ web console application to intelligently point to the master node in ActiveMQ cluster.
so let's copy the activemq-web-console-5.8.0.war to webapps directory of Tomcat. Add the following line to catalina.bat
set JAVA_OPTS=-Dwebconsole.type=properties -Dwebconsole.jms.url=failover:(tcp://localhost:61616,tcp://localhost:61626) -Dwebconsole.jmx.url=service:jmx:rmi:///jndi/rmi://localhost:1099/jmxrmi,service:jmx:rmi:///jndi/rmi://localhost:2099/jmxrmi
Now let's start Tomcat.
C:\apache-tomcat-7.0.35\bin>.\catalina.bat run Using CATALINA_BASE: "C:\apache-tomcat-7.0.35" Using CATALINA_HOME: "C:\apache-tomcat-7.0.35" Using CATALINA_TMPDIR: "C:\apache-tomcat-7.0.35\temp" Using JRE_HOME: "C:\Program Files\Java\jdk1.6.0_31" Using CLASSPATH: "C:\apache-tomcat-7.0.35\bin\bootstrap.jar;C:\apache-tomcat-7.0.35\bin\tomcat-juli.jar" Jul 9, 2013 5:28:08 PM org.apache.coyote.AbstractProtocol init INFO: Initializing ProtocolHandler ["http-bio-8080"] Jul 9, 2013 5:28:08 PM org.apache.coyote.AbstractProtocol init INFO: Initializing ProtocolHandler ["ajp-bio-8009"] Jul 9, 2013 5:28:08 PM org.apache.catalina.startup.Catalina load INFO: Initialization processed in 635 ms Jul 9, 2013 5:28:08 PM org.apache.catalina.core.StandardService startInternal INFO: Starting service Catalina Jul 9, 2013 5:28:08 PM org.apache.catalina.core.StandardEngine startInternal INFO: Starting Servlet Engine: Apache Tomcat/7.0.35 Jul 9, 2013 5:28:08 PM org.apache.catalina.startup.HostConfig deployWAR INFO: Deploying web application archive C:\apache-tomcat-7.0.35\webapps\activemq-web-console-5.8.0.war SLF4J: Class path contains multiple SLF4J bindings. SLF4J: Found binding in [jar:file:/C:/apache-tomcat-7.0.35/webapps/activemq-web-console-5.8.0/WEB-INF/lib/activemq-all-5.8.0.jar!/org/slf4j/impl/Stati cLoggerBinder.class] SLF4J: Found binding in [jar:file:/C:/apache-tomcat-7.0.35/webapps/activemq-web-console-5.8.0/WEB-INF/lib/slf4j-log4j12-1.6.6.jar!/org/slf4j/impl/Stat icLoggerBinder.class] SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation. SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory] 2013-07-09 17:28:13,389 [ost-startStop-1] INFO WebConsoleStarter - Web console type: properties 2013-07-09 17:28:13,960 [ost-startStop-1] INFO WebConsoleStarter - ActiveMQ WebConsole initialized. 2013-07-09 17:28:14,095 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/createDestination.action] onto handler '/createDest ination.action' 2013-07-09 17:28:14,096 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/deleteDestination.action] onto handler '/deleteDest ination.action' 2013-07-09 17:28:14,097 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/createSubscriber.action] onto handler '/createSubsc riber.action' 2013-07-09 17:28:14,098 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/deleteSubscriber.action] onto handler '/deleteSubsc riber.action' 2013-07-09 17:28:14,099 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/sendMessage.action] onto handler '/sendMessage.acti on' 2013-07-09 17:28:14,100 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/purgeDestination.action] onto handler '/purgeDestin ation.action' 2013-07-09 17:28:14,101 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/deleteMessage.action] onto handler '/deleteMessage. action' 2013-07-09 17:28:14,103 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/copyMessage.action] onto handler '/copyMessage.acti on' 2013-07-09 17:28:14,104 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/moveMessage.action] onto handler '/moveMessage.acti on' 2013-07-09 17:28:14,105 [ost-startStop-1] INFO ndingBeanNameUrlHandlerMapping - Mapped URL path [/deleteJob.action] onto handler '/deleteJob.action' Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\docs Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\examples Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\host-manager Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\manager Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.HostConfig deployDirectory INFO: Deploying web application directory C:\apache-tomcat-7.0.35\webapps\ROOT Jul 9, 2013 5:28:14 PM org.apache.coyote.AbstractProtocol start INFO: Starting ProtocolHandler ["http-bio-8080"] Jul 9, 2013 5:28:14 PM org.apache.coyote.AbstractProtocol start INFO: Starting ProtocolHandler ["ajp-bio-8009"] Jul 9, 2013 5:28:14 PM org.apache.catalina.startup.Catalina start INFO: Server startup in 6642 ms
Let's access the web console: http://localhost:8080/activemq-web-console-5.8.0
Use admin/admin for username/password if prompted. These are default security settings. Refer jetty.xml and jetty-realm.properties in conf directory.
As shown above, "broker-1" is the current master broker.
Now, if you were to shutdown broker-1. Hit Control+C on Terminal window running broker-1, you'd notice that broker-2 acquires the lock and becomes the master.
INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked. INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked. INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked. INFO | Database C:\apache-activemq-5.8.0\data\kahadb\lock is locked... waiting 10 seconds for the database to be unlocked. Reason: java.io.IOExceptio n: File 'C:\apache-activemq-5.8.0\data\kahadb\lock' could not be locked. INFO | KahaDB is version 4 INFO | Recovering from the journal ... INFO | Recovery replayed 2 operations from the journal in 0.022 seconds. INFO | Apache ActiveMQ 5.8.0 (broker-2, ID:AKUNTAMU-1-28147-1373409767675-0:1) is starting INFO | Listening for connections at: tcp://AKUNTAMU-1:61626?maximumConnections=1000&wireformat.maxFrameSize=104857600 INFO | Connector openwire Started INFO | Apache ActiveMQ 5.8.0 (broker-2, ID:AKUNTAMU-1-28147-1373409767675-0:1) started INFO | For help or more information please see: http://activemq.apache.org WARN | Store limit is 102400 mb, whilst the data directory: C:\apache-activemq-5.8.0\data\kahadb only has 38888 mb of usable space ERROR | Temporary Store limit is 51200 mb, whilst the temporary data directory: C:\apache-activemq-5.8.0\data\broker-2\tmp_storage only has 38888 mb o f usable space INFO | Web console type: embedded INFO | ActiveMQ WebConsole initialized. INFO | Initializing Spring FrameworkServlet 'dispatcher' INFO | jolokia-agent: No access restrictor found at classpath:/jolokia-access.xml, access to all MBeans is allowed
Let's refresh the web console
As you may observe, now the master node is broker-2.
Now that we have seen seamless switch over between the nodes during a failover scenario using an external web console, let's see the same from the perspective of a message producer and consumer.
I will publish 50 persistent messages to a queue using a simple message publisher and have an asynchronous consumer receive those 50 messages. I will introduce a bit of a delay in sending the messages so we can take the master down a few times and create a few failover scenarios. The objective is to see how the failover protocol makes the node failover completely transparent and thus shields the application from having to deal with any reconnection logic.
Here is a simple producer using ActiveMQConnectionFactory with failover protocol. Notice the highlighted failover protocol URL in the code snippet below.

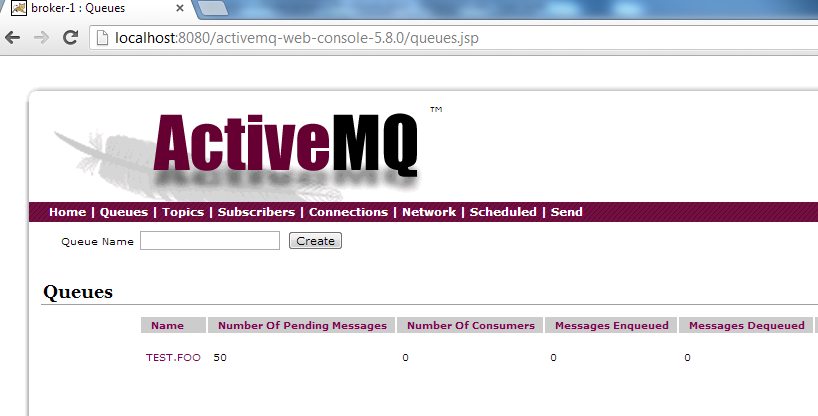

Here is the web console showing 50 messages enqueued.
Now lets try to consume these messages using an asynchronous consumer using ActiveMQ connection factory with failover protocol.
Here is simple asynchronous consumer with ActiveMQConnectionFactory using failover protocol.
Here are the logs from the execution. I switched the master nodes a few times as evident in the logs.
Let's check out the ActiveMQ web console:
Conclusion:
We have thus seen the following in action:
Happy ActiveMQ'ing!
References:
I will publish 50 persistent messages to a queue using a simple message publisher and have an asynchronous consumer receive those 50 messages. I will introduce a bit of a delay in sending the messages so we can take the master down a few times and create a few failover scenarios. The objective is to see how the failover protocol makes the node failover completely transparent and thus shields the application from having to deal with any reconnection logic.
Here is a simple producer using ActiveMQConnectionFactory with failover protocol. Notice the highlighted failover protocol URL in the code snippet below.
package com.akuntamukkala.amqms;
import javax.jms.Connection;
import javax.jms.DeliveryMode;
import javax.jms.Destination;
import javax.jms.MessageProducer;
import javax.jms.Session;
import javax.jms.TextMessage;
import org.apache.activemq.ActiveMQConnectionFactory;
import org.apache.log4j.Logger;
public class Producer {
private static final Logger log = Logger.getLogger(Producer.class);
public static void main(String[] args) throws Exception {
// Create a ConnectionFactory
ActiveMQConnectionFactory connectionFactory = new ActiveMQConnectionFactory(
"failover:(tcp://localhost:61616,tcp://localhost:61626)");
for (int i = 0; i < 50; i++) {
log.info("Establishing connection");
// Create a Connection
Connection connection = connectionFactory.createConnection();
connection.start();
log.info("Connection established");
// Create a Session
Session session = connection.createSession(false,
Session.AUTO_ACKNOWLEDGE);
// Create the destination (Topic or Queue)
Destination destination = session.createQueue("TEST.FOO");
// Create a MessageProducer from the Session to the Topic or Queue
MessageProducer producer = session.createProducer(destination);
producer.setDeliveryMode(DeliveryMode.PERSISTENT);
// Create a messages
String text = "Message Counter : " + i;
TextMessage message = session.createTextMessage(text);
log.info("Sending message : " + text);
producer.send(message);
log.info("Sent message : " + text);
// Clean up
session.close();
connection.close();
Thread.sleep(1000);
}
}
}
Here are the logs from execution while I shutdown broker-1 and broker-2 alternatively a few times.
2013-07-10 11:26:32 INFO Producer:25 - Establishing connection 2013-07-10 11:26:33 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:33 INFO Producer:30 - Connection established 2013-07-10 11:26:33 INFO Producer:47 - Sending message : Message Counter : 0 2013-07-10 11:26:33 INFO Producer:49 - Sent message : Message Counter : 0 2013-07-10 11:26:34 INFO Producer:25 - Establishing connection 2013-07-10 11:26:35 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:35 INFO Producer:30 - Connection established 2013-07-10 11:26:35 INFO Producer:47 - Sending message : Message Counter : 1 2013-07-10 11:26:35 INFO Producer:49 - Sent message : Message Counter : 1 2013-07-10 11:26:35 INFO Producer:25 - Establishing connection 2013-07-10 11:26:36 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:36 INFO Producer:30 - Connection established 2013-07-10 11:26:36 INFO Producer:47 - Sending message : Message Counter : 2 2013-07-10 11:26:36 INFO Producer:49 - Sent message : Message Counter : 2 2013-07-10 11:26:37 INFO Producer:25 - Establishing connection 2013-07-10 11:26:37 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:37 INFO Producer:30 - Connection established 2013-07-10 11:26:37 INFO Producer:47 - Sending message : Message Counter : 3 2013-07-10 11:26:37 INFO Producer:49 - Sent message : Message Counter : 3 2013-07-10 11:26:37 INFO Producer:25 - Establishing connection 2013-07-10 11:26:38 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:38 INFO Producer:30 - Connection established 2013-07-10 11:26:38 INFO Producer:47 - Sending message : Message Counter : 4 2013-07-10 11:26:38 INFO Producer:49 - Sent message : Message Counter : 4 2013-07-10 11:26:39 INFO Producer:25 - Establishing connection 2013-07-10 11:26:39 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:39 INFO Producer:30 - Connection established 2013-07-10 11:26:39 INFO Producer:47 - Sending message : Message Counter : 5 2013-07-10 11:26:39 INFO Producer:49 - Sent message : Message Counter : 5 2013-07-10 11:26:39 INFO Producer:25 - Establishing connection 2013-07-10 11:26:39 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:39 INFO Producer:30 - Connection established 2013-07-10 11:26:39 INFO Producer:47 - Sending message : Message Counter : 6 2013-07-10 11:26:39 INFO Producer:49 - Sent message : Message Counter : 6 2013-07-10 11:26:40 INFO Producer:25 - Establishing connection 2013-07-10 11:26:40 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:40 INFO Producer:30 - Connection established 2013-07-10 11:26:40 INFO Producer:47 - Sending message : Message Counter : 7 2013-07-10 11:26:40 INFO Producer:49 - Sent message : Message Counter : 7 2013-07-10 11:26:40 INFO Producer:25 - Establishing connection 2013-07-10 11:26:40 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:40 INFO Producer:30 - Connection established 2013-07-10 11:26:40 INFO Producer:47 - Sending message : Message Counter : 8 2013-07-10 11:26:40 INFO Producer:49 - Sent message : Message Counter : 8 2013-07-10 11:26:41 INFO Producer:25 - Establishing connection 2013-07-10 11:26:41 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:41 INFO Producer:30 - Connection established 2013-07-10 11:26:41 INFO Producer:47 - Sending message : Message Counter : 9 2013-07-10 11:26:41 INFO Producer:49 - Sent message : Message Counter : 9 2013-07-10 11:26:41 INFO Producer:25 - Establishing connection 2013-07-10 11:26:41 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:41 INFO Producer:30 - Connection established 2013-07-10 11:26:41 INFO Producer:47 - Sending message : Message Counter : 10 2013-07-10 11:26:41 INFO Producer:49 - Sent message : Message Counter : 10 2013-07-10 11:26:42 INFO Producer:25 - Establishing connection 2013-07-10 11:26:43 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:43 INFO Producer:30 - Connection established 2013-07-10 11:26:43 INFO Producer:47 - Sending message : Message Counter : 11 2013-07-10 11:26:43 INFO Producer:49 - Sent message : Message Counter : 11 2013-07-10 11:26:43 INFO Producer:25 - Establishing connection 2013-07-10 11:26:43 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:26:43 WARN FailoverTransport:255 - Transport (tcp://127.0.0.1:61616) failed, reason: java.net.SocketException: Software caused connection abort: recv failed, attempting to automatically reconnect 2013-07-10 11:26:50 INFO FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61626 2013-07-10 11:26:50 INFO Producer:30 - Connection established 2013-07-10 11:26:50 INFO Producer:47 - Sending message : Message Counter : 12 2013-07-10 11:26:50 INFO Producer:49 - Sent message : Message Counter : 12 2013-07-10 11:26:51 INFO Producer:25 - Establishing connection 2013-07-10 11:26:52 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:26:52 INFO Producer:30 - Connection established 2013-07-10 11:26:52 INFO Producer:47 - Sending message : Message Counter : 13 2013-07-10 11:26:52 INFO Producer:49 - Sent message : Message Counter : 13 2013-07-10 11:26:52 INFO Producer:25 - Establishing connection 2013-07-10 11:26:53 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:26:53 INFO Producer:30 - Connection established 2013-07-10 11:26:53 INFO Producer:47 - Sending message : Message Counter : 14 2013-07-10 11:26:53 INFO Producer:49 - Sent message : Message Counter : 14 2013-07-10 11:26:54 INFO Producer:25 - Establishing connection 2013-07-10 11:26:54 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:26:54 INFO Producer:30 - Connection established 2013-07-10 11:26:54 INFO Producer:47 - Sending message : Message Counter : 15 2013-07-10 11:26:54 INFO Producer:49 - Sent message : Message Counter : 15 2013-07-10 11:26:54 INFO Producer:25 - Establishing connection 2013-07-10 11:26:55 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:26:55 INFO Producer:30 - Connection established 2013-07-10 11:26:55 INFO Producer:47 - Sending message : Message Counter : 16 2013-07-10 11:26:55 INFO Producer:49 - Sent message : Message Counter : 16 2013-07-10 11:26:56 INFO Producer:25 - Establishing connection 2013-07-10 11:26:57 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:26:57 INFO Producer:30 - Connection established 2013-07-10 11:26:57 INFO Producer:47 - Sending message : Message Counter : 17 2013-07-10 11:26:57 INFO Producer:49 - Sent message : Message Counter : 17 2013-07-10 11:26:57 INFO Producer:25 - Establishing connection 2013-07-10 11:26:58 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:26:58 INFO Producer:30 - Connection established 2013-07-10 11:26:58 INFO Producer:47 - Sending message : Message Counter : 18 2013-07-10 11:26:58 INFO Producer:49 - Sent message : Message Counter : 18 2013-07-10 11:26:59 INFO Producer:25 - Establishing connection 2013-07-10 11:26:59 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:26:59 INFO Producer:30 - Connection established 2013-07-10 11:26:59 INFO Producer:47 - Sending message : Message Counter : 19 2013-07-10 11:26:59 INFO Producer:49 - Sent message : Message Counter : 19 2013-07-10 11:26:59 INFO Producer:25 - Establishing connection 2013-07-10 11:26:59 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:26:59 INFO Producer:30 - Connection established 2013-07-10 11:26:59 INFO Producer:47 - Sending message : Message Counter : 20 2013-07-10 11:26:59 INFO Producer:49 - Sent message : Message Counter : 20 2013-07-10 11:27:00 INFO Producer:25 - Establishing connection 2013-07-10 11:27:01 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:01 INFO Producer:30 - Connection established 2013-07-10 11:27:01 INFO Producer:47 - Sending message : Message Counter : 21 2013-07-10 11:27:01 INFO Producer:49 - Sent message : Message Counter : 21 2013-07-10 11:27:01 INFO Producer:25 - Establishing connection 2013-07-10 11:27:01 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:01 INFO Producer:30 - Connection established 2013-07-10 11:27:01 INFO Producer:47 - Sending message : Message Counter : 22 2013-07-10 11:27:01 INFO Producer:49 - Sent message : Message Counter : 22 2013-07-10 11:27:02 INFO Producer:25 - Establishing connection 2013-07-10 11:27:02 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:02 INFO Producer:30 - Connection established 2013-07-10 11:27:02 INFO Producer:47 - Sending message : Message Counter : 23 2013-07-10 11:27:02 INFO Producer:49 - Sent message : Message Counter : 23 2013-07-10 11:27:02 INFO Producer:25 - Establishing connection 2013-07-10 11:27:02 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:02 INFO Producer:30 - Connection established 2013-07-10 11:27:02 INFO Producer:47 - Sending message : Message Counter : 24 2013-07-10 11:27:02 INFO Producer:49 - Sent message : Message Counter : 24 2013-07-10 11:27:03 INFO Producer:25 - Establishing connection 2013-07-10 11:27:03 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:03 INFO Producer:30 - Connection established 2013-07-10 11:27:03 INFO Producer:47 - Sending message : Message Counter : 25 2013-07-10 11:27:03 INFO Producer:49 - Sent message : Message Counter : 25 2013-07-10 11:27:03 INFO Producer:25 - Establishing connection 2013-07-10 11:27:03 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:03 INFO Producer:30 - Connection established 2013-07-10 11:27:03 INFO Producer:47 - Sending message : Message Counter : 26 2013-07-10 11:27:03 INFO Producer:49 - Sent message : Message Counter : 26 2013-07-10 11:27:04 INFO Producer:25 - Establishing connection 2013-07-10 11:27:04 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:06 WARN FailoverTransport:255 - Transport (tcp://127.0.0.1:61626) failed, reason: java.net.SocketException: Software caused connection abort: recv failed, attempting to automatically reconnect 2013-07-10 11:27:15 INFO FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61616 2013-07-10 11:27:15 INFO Producer:30 - Connection established 2013-07-10 11:27:15 INFO Producer:47 - Sending message : Message Counter : 27 2013-07-10 11:27:15 INFO Producer:49 - Sent message : Message Counter : 27 2013-07-10 11:27:16 INFO Producer:25 - Establishing connection 2013-07-10 11:27:17 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:17 INFO Producer:30 - Connection established 2013-07-10 11:27:17 INFO Producer:47 - Sending message : Message Counter : 28 2013-07-10 11:27:17 INFO Producer:49 - Sent message : Message Counter : 28 2013-07-10 11:27:17 INFO Producer:25 - Establishing connection 2013-07-10 11:27:18 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:18 INFO Producer:30 - Connection established 2013-07-10 11:27:18 INFO Producer:47 - Sending message : Message Counter : 29 2013-07-10 11:27:18 INFO Producer:49 - Sent message : Message Counter : 29 2013-07-10 11:27:19 INFO Producer:25 - Establishing connection 2013-07-10 11:27:20 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:20 INFO Producer:30 - Connection established 2013-07-10 11:27:20 INFO Producer:47 - Sending message : Message Counter : 30 2013-07-10 11:27:20 INFO Producer:49 - Sent message : Message Counter : 30 2013-07-10 11:27:20 INFO Producer:25 - Establishing connection 2013-07-10 11:27:20 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:20 INFO Producer:30 - Connection established 2013-07-10 11:27:20 INFO Producer:47 - Sending message : Message Counter : 31 2013-07-10 11:27:20 INFO Producer:49 - Sent message : Message Counter : 31 2013-07-10 11:27:21 INFO Producer:25 - Establishing connection 2013-07-10 11:27:22 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:22 INFO Producer:30 - Connection established 2013-07-10 11:27:22 INFO Producer:47 - Sending message : Message Counter : 32 2013-07-10 11:27:22 INFO Producer:49 - Sent message : Message Counter : 32 2013-07-10 11:27:22 INFO Producer:25 - Establishing connection 2013-07-10 11:27:22 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:22 INFO Producer:30 - Connection established 2013-07-10 11:27:22 INFO Producer:47 - Sending message : Message Counter : 33 2013-07-10 11:27:22 INFO Producer:49 - Sent message : Message Counter : 33 2013-07-10 11:27:23 INFO Producer:25 - Establishing connection 2013-07-10 11:27:23 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:23 INFO Producer:30 - Connection established 2013-07-10 11:27:23 INFO Producer:47 - Sending message : Message Counter : 34 2013-07-10 11:27:23 INFO Producer:49 - Sent message : Message Counter : 34 2013-07-10 11:27:23 INFO Producer:25 - Establishing connection 2013-07-10 11:27:24 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:24 INFO Producer:30 - Connection established 2013-07-10 11:27:24 INFO Producer:47 - Sending message : Message Counter : 35 2013-07-10 11:27:24 INFO Producer:49 - Sent message : Message Counter : 35 2013-07-10 11:27:25 INFO Producer:25 - Establishing connection 2013-07-10 11:27:27 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:27 INFO Producer:30 - Connection established 2013-07-10 11:27:27 INFO Producer:47 - Sending message : Message Counter : 36 2013-07-10 11:27:27 INFO Producer:49 - Sent message : Message Counter : 36 2013-07-10 11:27:27 INFO Producer:25 - Establishing connection 2013-07-10 11:27:28 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:28 INFO Producer:30 - Connection established 2013-07-10 11:27:28 INFO Producer:47 - Sending message : Message Counter : 37 2013-07-10 11:27:28 INFO Producer:49 - Sent message : Message Counter : 37 2013-07-10 11:27:29 INFO Producer:25 - Establishing connection 2013-07-10 11:27:30 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:30 INFO Producer:30 - Connection established 2013-07-10 11:27:30 INFO Producer:47 - Sending message : Message Counter : 38 2013-07-10 11:27:30 INFO Producer:49 - Sent message : Message Counter : 38 2013-07-10 11:27:30 INFO Producer:25 - Establishing connection 2013-07-10 11:27:31 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616 2013-07-10 11:27:33 WARN FailoverTransport:255 - Transport (tcp://127.0.0.1:61616) failed, reason: java.net.SocketException: Software caused connection abort: recv failed, attempting to automatically reconnect 2013-07-10 11:27:38 INFO FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61626 2013-07-10 11:27:38 INFO Producer:30 - Connection established 2013-07-10 11:27:38 INFO Producer:47 - Sending message : Message Counter : 39 2013-07-10 11:27:38 INFO Producer:49 - Sent message : Message Counter : 39 2013-07-10 11:27:39 INFO Producer:25 - Establishing connection 2013-07-10 11:27:39 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:39 INFO Producer:30 - Connection established 2013-07-10 11:27:39 INFO Producer:47 - Sending message : Message Counter : 40 2013-07-10 11:27:39 INFO Producer:49 - Sent message : Message Counter : 40 2013-07-10 11:27:39 INFO Producer:25 - Establishing connection 2013-07-10 11:27:40 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:40 INFO Producer:30 - Connection established 2013-07-10 11:27:40 INFO Producer:47 - Sending message : Message Counter : 41 2013-07-10 11:27:40 INFO Producer:49 - Sent message : Message Counter : 41 2013-07-10 11:27:41 INFO Producer:25 - Establishing connection 2013-07-10 11:27:42 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:42 INFO Producer:30 - Connection established 2013-07-10 11:27:42 INFO Producer:47 - Sending message : Message Counter : 42 2013-07-10 11:27:42 INFO Producer:49 - Sent message : Message Counter : 42 2013-07-10 11:27:42 INFO Producer:25 - Establishing connection 2013-07-10 11:27:42 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:42 INFO Producer:30 - Connection established 2013-07-10 11:27:42 INFO Producer:47 - Sending message : Message Counter : 43 2013-07-10 11:27:42 INFO Producer:49 - Sent message : Message Counter : 43 2013-07-10 11:27:43 INFO Producer:25 - Establishing connection 2013-07-10 11:27:44 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:44 INFO Producer:30 - Connection established 2013-07-10 11:27:44 INFO Producer:47 - Sending message : Message Counter : 44 2013-07-10 11:27:44 INFO Producer:49 - Sent message : Message Counter : 44 2013-07-10 11:27:44 INFO Producer:25 - Establishing connection 2013-07-10 11:27:45 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:45 INFO Producer:30 - Connection established 2013-07-10 11:27:45 INFO Producer:47 - Sending message : Message Counter : 45 2013-07-10 11:27:45 INFO Producer:49 - Sent message : Message Counter : 45 2013-07-10 11:27:46 INFO Producer:25 - Establishing connection 2013-07-10 11:27:47 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:47 INFO Producer:30 - Connection established 2013-07-10 11:27:47 INFO Producer:47 - Sending message : Message Counter : 46 2013-07-10 11:27:47 INFO Producer:49 - Sent message : Message Counter : 46 2013-07-10 11:27:48 INFO Producer:25 - Establishing connection 2013-07-10 11:27:48 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:48 INFO Producer:30 - Connection established 2013-07-10 11:27:48 INFO Producer:47 - Sending message : Message Counter : 47 2013-07-10 11:27:48 INFO Producer:49 - Sent message : Message Counter : 47 2013-07-10 11:27:48 INFO Producer:25 - Establishing connection 2013-07-10 11:27:49 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:49 INFO Producer:30 - Connection established 2013-07-10 11:27:49 INFO Producer:47 - Sending message : Message Counter : 48 2013-07-10 11:27:49 INFO Producer:49 - Sent message : Message Counter : 48 2013-07-10 11:27:50 INFO Producer:25 - Establishing connection 2013-07-10 11:27:51 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61626 2013-07-10 11:27:51 INFO Producer:30 - Connection established 2013-07-10 11:27:51 INFO Producer:47 - Sending message : Message Counter : 49 2013-07-10 11:27:51 INFO Producer:49 - Sent message : Message Counter : 49
Here is the web console showing 50 messages enqueued.
Don't bother the #Messages Enqueued = 0 in the above screenshot. This count represents the number of messages enqueued since this node started. Since I had restarted the node after the 50 messages were already enqueued, the count shows as 0.
Here is simple asynchronous consumer with ActiveMQConnectionFactory using failover protocol.
package com.akuntamukkala.amqms;
import javax.jms.Connection;
import javax.jms.Destination;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageConsumer;
import javax.jms.MessageListener;
import javax.jms.Session;
import javax.jms.TextMessage;
import org.apache.activemq.ActiveMQConnectionFactory;
import org.apache.log4j.Logger;
public class Consumer implements MessageListener {
private static final Logger log = Logger.getLogger(Consumer.class);
public static void main(String[] args) throws Exception {
ActiveMQConnectionFactory connectionFactory = new ActiveMQConnectionFactory(
"failover:(tcp://localhost:61616,tcp://localhost:61626)");
// Create a Connection
Connection connection = connectionFactory.createConnection();
connection.start();
// Create a Session
Session session = connection.createSession(false,
Session.AUTO_ACKNOWLEDGE);
// Create the destination (Topic or Queue)
Destination destination = session.createQueue("TEST.FOO");
// Create a MessageConsumer from the Session to the Queue
MessageConsumer consumer = session.createConsumer(destination);
consumer.setMessageListener(new Consumer()); // asynchronous listener
Thread.sleep(120000); // long wait to keep program running
consumer.close();
session.close();
connection.close();
}
/**
* asynchronous message listener
*/
public void onMessage(Message message) {
try {
log.info(((TextMessage) message).getText());
Thread.sleep(500);
} catch (JMSException e) {
log.error(e);
} catch (InterruptedException e) {
log.error(e);
}
}
}
Here are the logs from the execution. I switched the master nodes a few times as evident in the logs.
2013-07-10 11:46:01 INFO FailoverTransport:1030 - Successfully connected to tcp://localhost:61616
2013-07-10 11:46:01 INFO Consumer:49 - Message Counter : 0
2013-07-10 11:46:02 INFO Consumer:49 - Message Counter : 1
2013-07-10 11:46:02 INFO Consumer:49 - Message Counter : 2
2013-07-10 11:46:03 INFO Consumer:49 - Message Counter : 3
2013-07-10 11:46:03 INFO Consumer:49 - Message Counter : 4
2013-07-10 11:46:04 INFO Consumer:49 - Message Counter : 5
2013-07-10 11:46:04 INFO Consumer:49 - Message Counter : 6
2013-07-10 11:46:05 INFO Consumer:49 - Message Counter : 7
2013-07-10 11:46:05 INFO Consumer:49 - Message Counter : 8
2013-07-10 11:46:06 INFO Consumer:49 - Message Counter : 9
2013-07-10 11:46:06 INFO Consumer:49 - Message Counter : 10
2013-07-10 11:46:07 INFO Consumer:49 - Message Counter : 11
2013-07-10 11:46:07 WARN FailoverTransport:255 - Transport (tcp://127.0.0.1:61616) failed, reason: java.io.EOFException, attempting to automatically reconnect
2013-07-10 11:46:18 INFO FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61626
2013-07-10 11:46:18 WARN ActiveMQMessageConsumer:1348 - Duplicate dispatch on connection: ID:AKUNTAMU-1-2141-1373474760280-1:1 to consumer: ID:AKUNTAMU-1-2141-1373474760280-1:1:1:1, ignoring (auto acking) duplicate: MessageDispatch {commandId = 0, responseRequired = false, consumerId = ID:AKUNTAMU-1-2141-1373474760280-1:1:1:1, destination = queue://TEST.FOO, message = ActiveMQTextMessage {commandId = 5, responseRequired = true, messageId = ID:AKUNTAMU-1-1739-1373473592152-1:12:1:1:1, originalDestination = null, originalTransactionId = null, producerId = ID:AKUNTAMU-1-1739-1373473592152-1:12:1:1, destination = queue://TEST.FOO, transactionId = null, expiration = 0, timestamp = 1373473603281, arrival = 0, brokerInTime = 1373473603281, brokerOutTime = 1373474778676, correlationId = null, replyTo = null, persistent = true, type = null, priority = 4, groupID = null, groupSequence = 0, targetConsumerId = null, compressed = false, userID = null, content = null, marshalledProperties = null, dataStructure = null, redeliveryCounter = 0, size = 0, properties = null, readOnlyProperties = true, readOnlyBody = true, droppable = false, text = Message Counter : 11}, redeliveryCounter = 0}
2013-07-10 11:46:18 INFO Consumer:49 - Message Counter : 12
2013-07-10 11:46:19 INFO Consumer:49 - Message Counter : 13
2013-07-10 11:46:19 INFO Consumer:49 - Message Counter : 14
2013-07-10 11:46:20 INFO Consumer:49 - Message Counter : 15
2013-07-10 11:46:20 INFO Consumer:49 - Message Counter : 16
2013-07-10 11:46:21 INFO Consumer:49 - Message Counter : 17
2013-07-10 11:46:21 INFO Consumer:49 - Message Counter : 18
2013-07-10 11:46:22 INFO Consumer:49 - Message Counter : 19
2013-07-10 11:46:22 INFO Consumer:49 - Message Counter : 20
2013-07-10 11:46:23 INFO Consumer:49 - Message Counter : 21
2013-07-10 11:46:23 INFO Consumer:49 - Message Counter : 22
2013-07-10 11:46:24 INFO Consumer:49 - Message Counter : 23
2013-07-10 11:46:24 INFO Consumer:49 - Message Counter : 24
2013-07-10 11:46:25 INFO Consumer:49 - Message Counter : 25
2013-07-10 11:46:25 INFO Consumer:49 - Message Counter : 26
2013-07-10 11:46:26 INFO Consumer:49 - Message Counter : 27
2013-07-10 11:46:26 INFO Consumer:49 - Message Counter : 28
2013-07-10 11:46:27 INFO Consumer:49 - Message Counter : 29
2013-07-10 11:46:27 INFO Consumer:49 - Message Counter : 30
2013-07-10 11:46:28 INFO Consumer:49 - Message Counter : 31
2013-07-10 11:46:28 INFO Consumer:49 - Message Counter : 32
2013-07-10 11:46:29 INFO Consumer:49 - Message Counter : 33
2013-07-10 11:46:29 INFO Consumer:49 - Message Counter : 34
2013-07-10 11:46:30 INFO Consumer:49 - Message Counter : 35
2013-07-10 11:46:30 INFO Consumer:49 - Message Counter : 36
2013-07-10 11:46:31 INFO Consumer:49 - Message Counter : 37
2013-07-10 11:46:31 INFO Consumer:49 - Message Counter : 38
2013-07-10 11:46:32 INFO Consumer:49 - Message Counter : 39
2013-07-10 11:46:32 WARN FailoverTransport:255 - Transport (tcp://127.0.0.1:61626) failed, reason: java.io.EOFException, attempting to automatically reconnect
2013-07-10 11:46:43 INFO FailoverTransport:1032 - Successfully reconnected to tcp://localhost:61616
2013-07-10 11:46:43 WARN ActiveMQMessageConsumer:1348 - Duplicate dispatch on connection: ID:AKUNTAMU-1-2141-1373474760280-1:1 to consumer: ID:AKUNTAMU-1-2141-1373474760280-1:1:1:1, ignoring (auto acking) duplicate: MessageDispatch {commandId = 0, responseRequired = false, consumerId = ID:AKUNTAMU-1-2141-1373474760280-1:1:1:1, destination = queue://TEST.FOO, message = ActiveMQTextMessage {commandId = 5, responseRequired = true, messageId = ID:AKUNTAMU-1-1739-1373473592152-1:40:1:1:1, originalDestination = null, originalTransactionId = null, producerId = ID:AKUNTAMU-1-1739-1373473592152-1:40:1:1, destination = queue://TEST.FOO, transactionId = null, expiration = 0, timestamp = 1373473658595, arrival = 0, brokerInTime = 1373473658599, brokerOutTime = 1373474803745, correlationId = null, replyTo = null, persistent = true, type = null, priority = 4, groupID = null, groupSequence = 0, targetConsumerId = null, compressed = false, userID = null, content = null, marshalledProperties = null, dataStructure = null, redeliveryCounter = 0, size = 0, properties = null, readOnlyProperties = true, readOnlyBody = true, droppable = false, text = Message Counter : 39}, redeliveryCounter = 0}
2013-07-10 11:46:43 INFO Consumer:49 - Message Counter : 40
2013-07-10 11:46:44 INFO Consumer:49 - Message Counter : 41
2013-07-10 11:46:44 INFO Consumer:49 - Message Counter : 42
2013-07-10 11:46:45 INFO Consumer:49 - Message Counter : 43
2013-07-10 11:46:45 INFO Consumer:49 - Message Counter : 44
2013-07-10 11:46:46 INFO Consumer:49 - Message Counter : 45
2013-07-10 11:46:46 INFO Consumer:49 - Message Counter : 46
2013-07-10 11:46:47 INFO Consumer:49 - Message Counter : 47
2013-07-10 11:46:47 INFO Consumer:49 - Message Counter : 48
2013-07-10 11:46:48 INFO Consumer:49 - Message Counter : 49
Let's check out the ActiveMQ web console:
You may find the # Messages Dequeued = 11 very interesting. This is the number of messages dequeued from the current ActiveMQ master node since it started.
Conclusion:
We have thus seen the following in action:
- Run 2 ActiveMQ nodes in a Master/Slave configuration with a shared KahaDB file based database.
- Configure ActiveMQ web console hosted in a Tomcat instance to point to whichever node is Master node in the cluster
- Failover scenario
- Message publisher and consumer behavior oblivious to the failover
Happy ActiveMQ'ing!
References:
Do you have url for webconsole war. Url you put in your blog is dead.
ReplyDeleteCP:
ReplyDeleteHere is the URL
http://repo1.maven.org/maven2/org/apache/activemq/activemq-web-console/5.8.0/activemq-web-console-5.8.0.war
There is a bug in 5.8.0 where the JMX connector is enabled for Slave node as well due to which webconsole becomes unable to distinguish master node from the slave nodes.
I have created a fix for myself to remedy the issue.
I will be sharing it over my next blog post soon.
Thank you
Ashwin
You can find more information on the following JIRA ticket
ReplyDeletehttps://issues.apache.org/jira/browse/AMQ-2306
how did you fix it? and this bug seems closed. did you report that it is happening again?
DeleteYes. Infact I just fixed this yesterday for myself. I haven't had a chance to reopen this issue or to post my fix to AMQ group yet.
DeleteIn a nutshell, here is what I did.
I added some more intelligence to RemoteJMXBrokerFacade class by extending it and overriding the findBrokers(...) method such that when it tries to obtain a JMX connection to a remote broker, it tests if the broker is a slave or master. If slave, it skips it and iterates to find the next broker in the list of URLs provided until it finds a master node.
I will post the code snippet next few days.
CP:
ReplyDeleteI have posted the fix here.
http://akuntamukkala.blogspot.com/2013/08/active-580-master-slave-web-console-fix.html
Let me know if you have any questions about the same. Hope this works out for you.
Ashwin
Does failover only work with messages sent in "persistent" mode?
ReplyDelete@johnlindwall Yes. Failover works only for persistent messages. Non-Persistent messages are in transient. If the broker crashes, those messages are lost. There is no way for the other broker to get hold of those.
DeleteThat makes sense. I am trying to demonstrate fail-over in ActiveMQ 5.9.0. Our application uses non-persistent messages but if required for fail-over )and if performance is acceptable) we could switch to persistent messages.
DeleteMy problem now is an inability to make fail-over work (persistent ot non-persistent). The slave does indeed take over for the master, but my publisher client code gets an exception: "javax.jms.IllegalStateException: The Session is closed"
I will follow your footsteps above and see if I can demonstrate fail-over using your instructions. I'll let you know how it goes!
THANKS!
I successfully followed your steps. There were some minor differences in 5.9.0.
Delete1. I did not have to modify broker-1 or broker-2 scripts at all
2. I did not need to enable JMX
I did not go to the trouble of deploying the console to the external tomcat.
For other folk's benefit, here are the jar file I needed to compile/run the code:
activemq-client-5.9.0.jar
geronimo-j2ee-management_1.1_spec-1.0.1.jar
geronimo-jms_1.1_spec-1.1.1.jar
hawtbuf-1.9.jar
log4j-1.2.17.jar
slf4j-api-1.7.5.jar
slf4j-log4j12-1.7.5.jar
One last discovery to share: failover does indeed seem to work with non-persistent messages. The messages must be recorded in kahadb even though persistence was not requested in the delivery mode? Seems a bit odd, but it is very good for my use case! We want to use non-persistent messages but benefit from failover.
Deleteproducer.setDeliveryMode(DeliveryMode.NON_PERSISTENT);
I'll try to get this fact confirmed with the activemq folks. Thanks again for your awesome blog entry that really boosted my productivity today!
Thanks @johnlindwall
DeleteAddendum to my notes about adapting your instructions to activemq 5.9.0:
Delete3. I had to edit the jettyPort in each brokers's conf/jetty.xml file to make them unique
CORRECTION: Fail-over does not preserve in-flight non-persistent messages! I had fooled myself in my testing setup. For non-persistent messages, fail-over will switch from a failed master to a newly-activated slave and message processing will continue but messages in-memory by the master at the time of the failure can be lost forever.
DeleteSorry for the misinformation.
